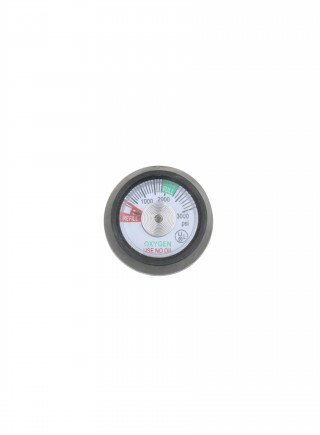

UL listed 1.25�1.5�3000PSI gauge

Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers
Dial: 1�(25mm), 1.25�(32mm) or 1.5�(40mm) white aluminum with black markings
Case: chrome plated brass,304 SS
Lens: Plexiglass or Polycarbonate
Spiral Tube: 60 to 2000 PSI:phosphor bronze
3000 PSI: Beryllium copper or Stainless steel
4000 PSI and above: 316L SS
Connection: 1/8�NPT standard, back
Pointer: 3000 PSI and below: Brass
4000 PSI and above: 304 SS
Over-Pressure Limit: 10% of full scale value
Working Pressure: 10% of full scale value
Ambient: -40°F to 150°F (-40°C to 65°C)
Accuracy: ±3-2-3% ANSI/ASME Grade B
Enclosure Rating: IP65
